框架式頂絲固定式UCT+WB型帶座軸承，以UCT鑄鐵軸承座搭配WB框架結構，整體剛性更佳，安裝鎖固更穩實。採用頂絲鎖緊設計，拆裝簡便、定位精準，軸承具備自動對心能力，可補償安裝偏差，密封防塵防污效果優異。適用於需框架式安裝、環境複雜且伴隨震動衝擊的輸送、礦山、農機及各類通用機械，運行穩定、承載表現突出。

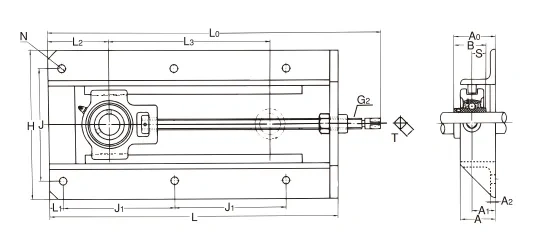

| 框架式・頂絲固定型 UCT+WB 形型號規格表 | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 軸徑 (mm) |
單元型號 | H (mm) |
L (mm) |
J (mm) |
J₁ (mm) |
N (mm) |
L₁ (mm) |
L₂ (mm) |
L₃ (mm) |
G₂ | L₀ (mm) |
A (mm) |
A₁ (mm) |
A₂ (mm) |
A₀ (mm) |
B (mm) |
S (mm) |
T (mm) |
安裝螺栓型號 | 軸承型號 | Cr (kN) |
Cor (kN) |
軸承座型號 | 框架型號 | 質量 (kg) |
| 65 | UCT213+WB | 322 | 606 | 260 | 260 | 15 | 22 | 144 | 280 | Tr36×6 | 699 | 65 | 38 | 6 | 77.7 | 65.1 | 25.4 | 27 | M12 | UC213 | 57.5 | 40 | T213 | WB213 | 23.4 |
| 60 | UCT212+WB | 301 | 568 | 240 | 243 | 15 | 22 | 127 | 285 | Tr30×6 | 657 | 65 | 38 | 6 | 77.7 | 65.1 | 25.4 | 24 | M12 | UC212 | 52.5 | 36.1 | T212 | WB212 | 18.7 |
| 55 | UCT211+WB | 301 | 542 | 240 | 230 | 15 | 22 | 114 | 285 | Tr30×6 | 631 | 65 | 38 | 6 | 71.4 | 55.6 | 22.2 | 24 | M12 | UC211 | 43 | 29.4 | T211 | WB211 | 17.3 |
| 50 | UCT210+WB | 233 | 520 | 192 | 219 | 15 | 22 | 108 | 295 | Tr26×5 | 593 | 50 | 30 | 6 | 62.6 | 51.6 | 19 | 22 | M12 | UC210 | 35.5 | 23.2 | T210 | WB210 | 11.2 |
| 45 | UCT209+WB | 233 | 520 | 192 | 219 | 15 | 22 | 108 | 295 | Tr26×5 | 590 | 50 | 30 | 6 | 60.2 | 49.2 | 19 | 22 | M12 | UC209 | 33 | 20.5 | T209 | WB210 | 11.1 |
| 40 | UCT208+WB | 233 | 520 | 192 | 219 | 15 | 22 | 108 | 295 | Tr26×5 | 591 | 50 | 30 | 6 | 60.2 | 49.2 | 19 | 22 | M12 | UC208 | 29.3 | 17.9 | T208 | WB210 | 11.1 |
| 35 | UCT207+WB | 212 | 429 | 166 | 173 | 12 | 19 | 99 | 230 | Tr18×4 | 490 | 50 | 30 | 6 | 55.4 | 42.9 | 17.5 | 14 | M10 | UC207 | 25.9 | 15.4 | T207 | WB207 | 7.9 |
| 30 | UCT206+WB | 212 | 337 | 166 | 127 | 12 | 19 | 95 | 150 | Tr18×4 | 396 | 50 | 30 | 6 | 52.2 | 38.1 | 15.9 | 14 | M10 | UC206 | 19.6 | 11.3 | T206 | WB206 | 5.9 |
| 25 | UCT205+WB | 199 | 317 | 154 | 117 | 12 | 19 | 83 | 150 | TM16×3 | 368 | 50 | 29 | 6 | 48.8 | 34.1 | 14.3 | 12 | M10 | UC205 | 14 | 7.9 | T205 | WB205 | 5 |
| 20 | UCT204+WB | 199 | 317 | 154 | 117 | 12 | 19 | 83 | 150 | TM16×3 | 367 | 50 | 29 | 6 | 47.3 | 31 | 12.7 | 12 | M10 | UC204 | 12.8 | 6.6 | T204 | WB205 | 5 |
| 17 | UCT203+WB | 199 | 317 | 154 | 117 | 12 | 19 | 83 | 150 | TM16×3 | 367 | 50 | 29 | 6 | 47.3 | 31 | 12.7 | 12 | M10 | UC203 | 12.8 | 6.6 | T204 | WB205 | 5 |
| 15 | UCT202+WB | 199 | 317 | 154 | 117 | 12 | 19 | 83 | 150 | TM16×3 | 367 | 50 | 29 | 6 | 47.3 | 31 | 12.7 | 12 | M10 | UC202 | 12.8 | 6.6 | T204 | WB205 | 5 |
| 12 | UCT201+WB | 199 | 317 | 154 | 117 | 12 | 19 | 83 | 150 | TM16×3 | 367 | 50 | 29 | 6 | 47.3 | 31 | 12.7 | 12 | M10 | UC201 | 12.8 | 6.6 | T204 | WB205 | 5 |
