二段式JBS型：採用兩段式結構設計，外罩與球面內圈皆使用SUJ2材質，硬度高、耐磨耗、精度穩定。整體結構緊實堅固，傳動配合精密，適用於各類一般機械鉸接、擺動傳動工況，運轉穩定耐用，可搭配多種通用機械設備使用。
PTFE襯墊式FBS型：外罩與球面內圈選用優質SUJ2材質，搭配PTFE耐磨襯墊，具備優異的自潤滑、低摩擦特性，免保養、抗磨損、運轉低噪音。適用於高頻擺動、輕載精密傳動場域，使用壽命更長，廣泛應用於自動化設備各類傳動結構。

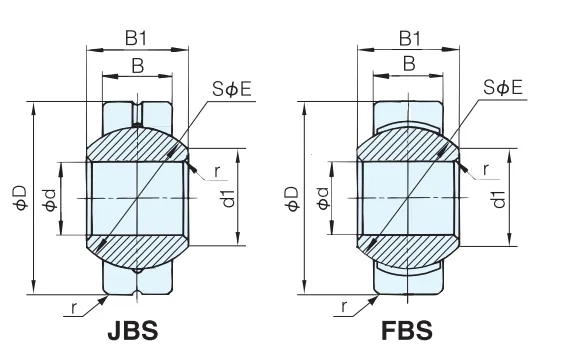

| 型號 JBS ·FBS |
主要尺寸（mm） | 容許倾斜角α2(°) | 動負荷 容量 Cd (kN) |
靜負荷 容量Cs(kN) |
重量(g) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | D | B | B1 | d1 | rsmin(1) | E | 徑向負荷 | 軸向負荷 | ||||
| FBS20 | 20 | 46 | 17.5 | 25 | 24.4 | 0.3 | 34.925 | 10 | 15 | 25 | 240 | 59.9 |
| FBS18 | 18 | 42 | 15.9 | 23 | 21.9 | 0.3 | 31.75 | 11 | 16 | 25 | 198 | 49.5 |
| FBS16 | 16 | 38 | 14.3 | 21 | 19.4 | 0.3 | 28.575 | 11 | 17 | 25 | 160 | 40.1 |
| FBS14 | 14 | 34 | 12.5 | 19 | 16.9 | 0.3 | 25.4 | 11 | 18 | 26 | 126 | 31.6 |
| FBS12 | 12 | 30 | 11.1 | 16 | 15.4 | 0.3 | 22.225 | 10 | 16 | 27 | 96.7 | 24.2 |
| FBS10 | 10 | 26 | 9.5 | 14 | 12.9 | 0.3 | 19.05 | 10 | 17 | 28 | 71 | 17.7 |
| FBS8 | 8 | 22 | 7.9 | 12 | 10.4 | 0.3 | 15.875 | 11 | 19 | 29 | 49.2 | 12.3 |
| FBS9 | 9 | 18 | 6.4 | 9 | 9 | 0.3 | 12.7 | 9 | 14 | 31 | 31.8 | 7.9 |
| FBS5 | 5 | 16 | 5.6 | 8 | 7.7 | 0.3 | 11.112 | 9 | 15 | 32 | 24.4 | 6.1 |
| JBS20 | 20 | 46 | 17.5 | 25 | 24.4 | 0.3 | 34.925 | 10 | 15 | 25 | 240 | 59.9 |
| JBS18 | 18 | 42 | 15.9 | 23 | 21.9 | 0.3 | 31.75 | 11 | 16 | 25 | 198 | 49.5 |
| JBS16 | 16 | 38 | 14.3 | 21 | 19.4 | 0.3 | 28.575 | 11 | 17 | 25 | 160 | 40.1 |
| JBS14 | 14 | 34 | 12.5 | 19 | 16.9 | 0.3 | 25.4 | 11 | 18 | 26 | 126 | 31.6 |
| JBS12 | 12 | 30 | 11.1 | 16 | 15.4 | 0.3 | 22.225 | 10 | 16 | 27 | 96.7 | 24.2 |
| JBS10 | 10 | 26 | 9.5 | 14 | 12.9 | 0.3 | 19.05 | 10 | 17 | 28 | 71 | 17.7 |
| JBS8 | 8 | 22 | 7.9 | 12 | 10.4 | 0.3 | 15.875 | 11 | 19 | 29 | 49.2 | 12.3 |
| JBS9 | 9 | 18 | 6.4 | 9 | 9 | 0.3 | 12.7 | 9 | 14 | 31 | 31.8 | 7.9 |
| JBS5 | 5 | 16 | 5.6 | 8 | 7.7 | 0.3 | 11.112 | 9 | 15 | 32 | 24.4 | 6.1 |
